AS7C34096A-8TIN
Manufacturer:
Alliance Memory
Mfr.Part #:
AS7C34096A-8TIN
Datasheet:
Description:

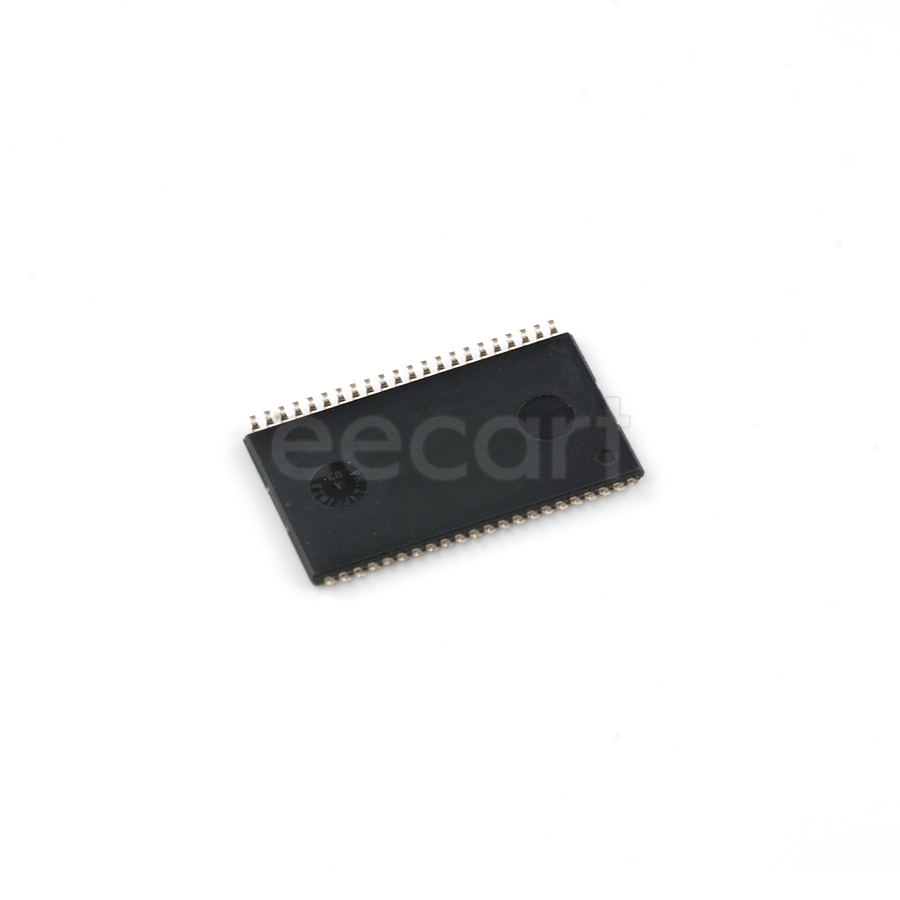

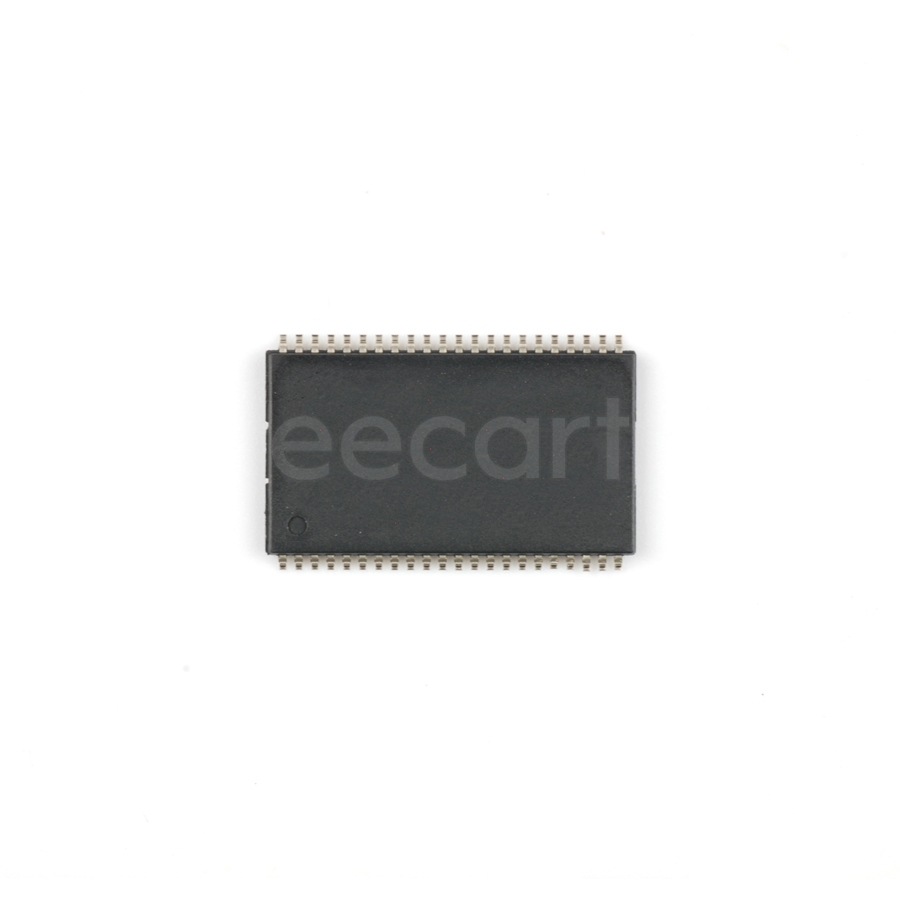

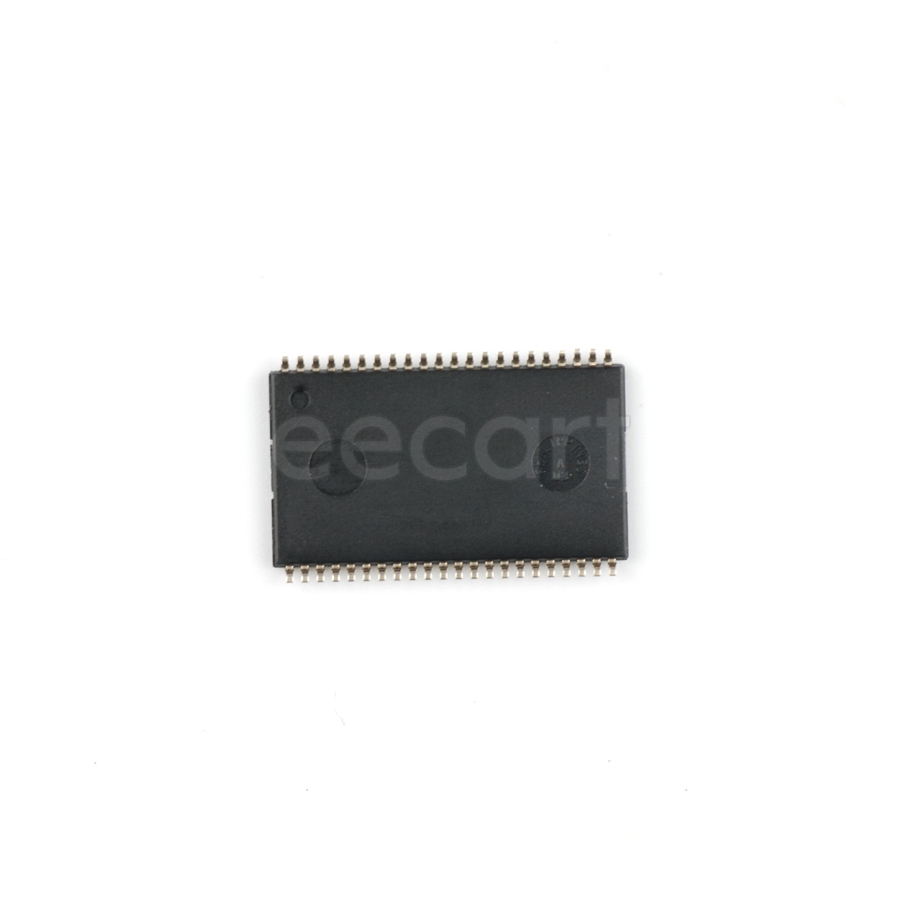

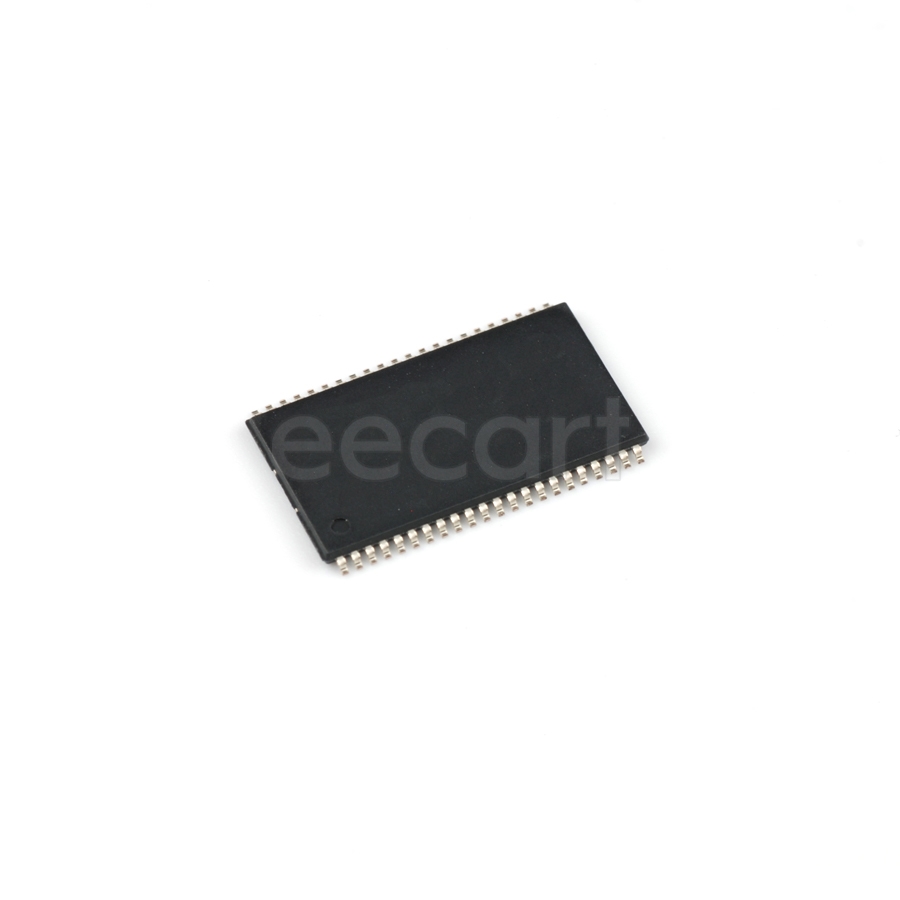

RAM TSOP II-44 SMD/SMT Parallel 512 kb RAM, SDR, SRAM, SRAM - Asynchronous
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 44 |
| Radiation Hardening | No |
| RoHS | Compliant |
| Interface | Parallel |
| Memory Size | 512 kb |
| Memory Type | RAM, SDR, SRAM, SRAM - Asynchronous |
| Operating Supply Voltage | 3.3 V |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 3 V |
| Access Time | 8 ns |
| Max Supply Current | 80 mA |
| Number of Ports | 1 |
| Address Bus Width | 19 b |
| Density | 4 Mb |
| Packaging | Tray |
Stock: 325
Distributors
pcbx
pcbxUnit Price$4.00534
Ext.Price$4.00534
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.00534 | $4.00534 |
| 10 | $3.82410 | $38.24100 |
| 25 | $3.71723 | $92.93075 |
| 50 | $3.63003 | $181.50150 |
| 100 | $3.51120 | $351.12000 |
| 300 | $3.37674 | $1013.02200 |
| 500 | $3.24743 | $1623.71500 |
| 1000 | $3.12306 | $3123.06000 |
